Soda Water Accessories Sparking Water Maker Cylinder Tank CO2 Filling Station Refill Adapter Connector W21.8-14 or G3/4 or CGA320

Product information:

Heavy duty cylinder connector.
The product fills CO2 from large cylinders into smaller soda cylinders.

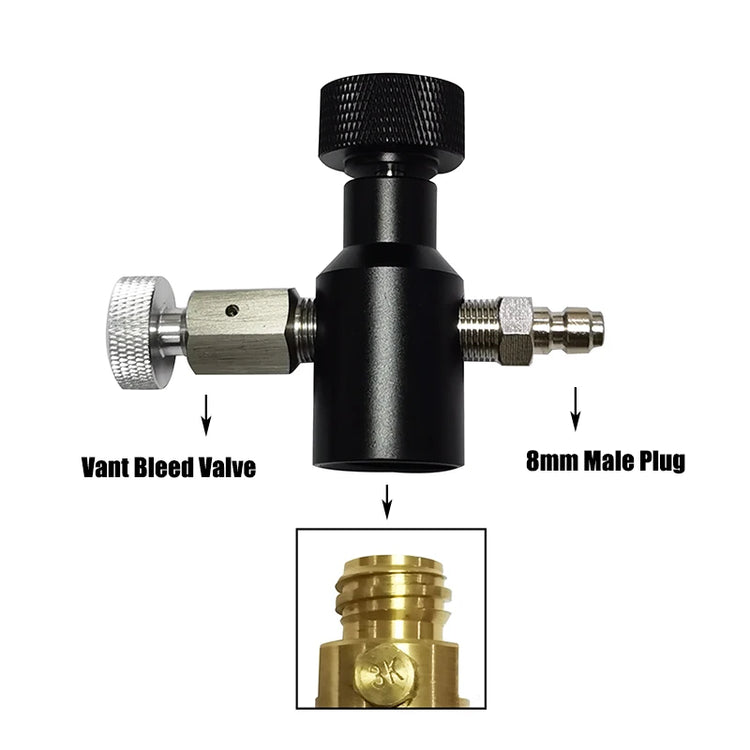

Stainless steel filling adapter quick disconnector.

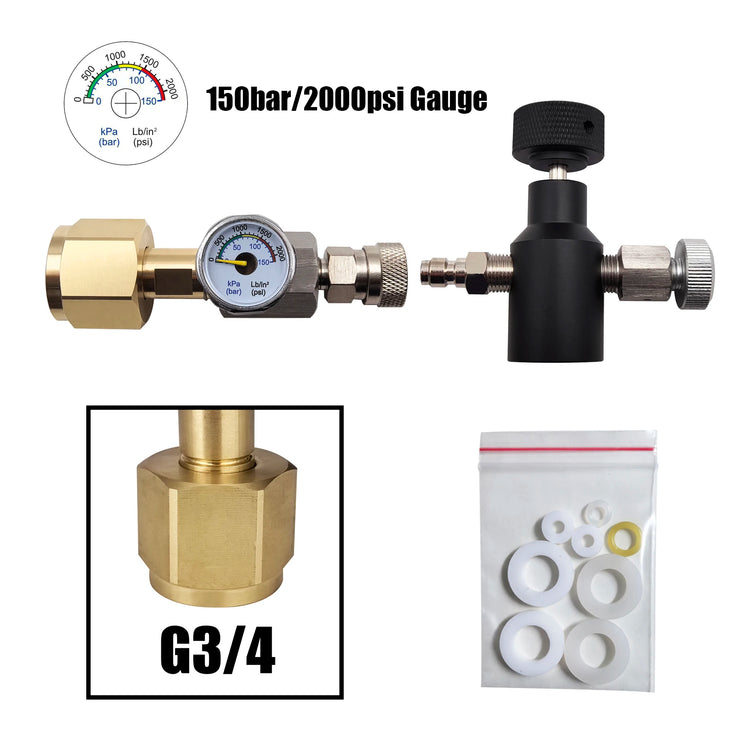

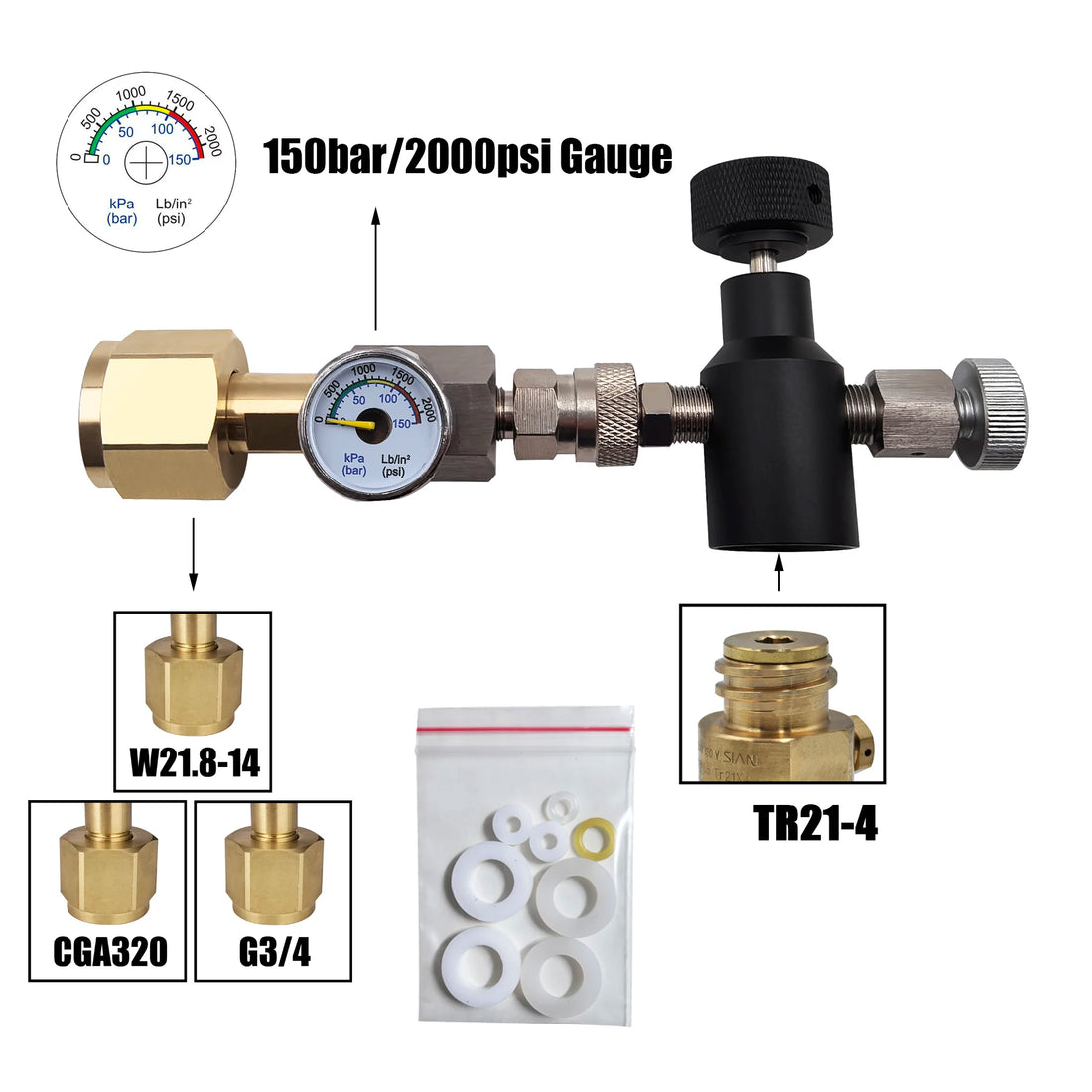

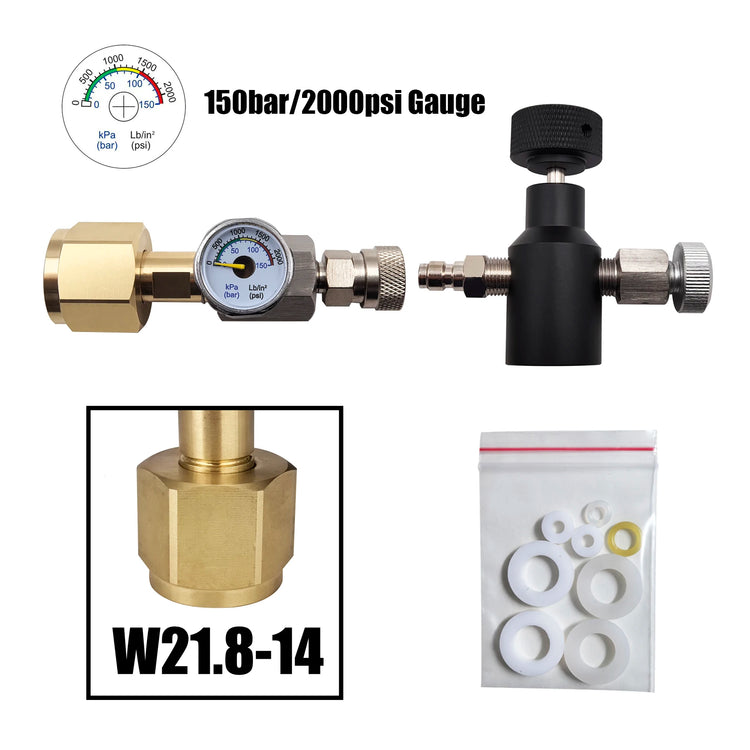

CO2 tank valve connector thread w21.8-14 (din477) or G3/4 or CGA320 can be used.

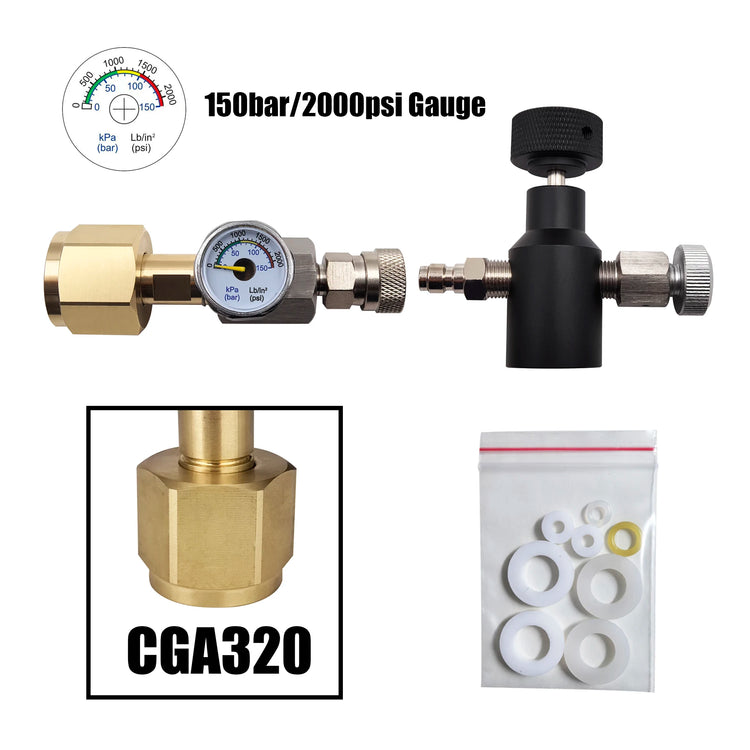

CGA320 connector CO2 storage tank is common in the United States, Canada, Brazil and other countries.

W21.8-14 (DIN 477) connector is compatible with JIS m22-14, which is commonly used in Kor, JP, UK, Germany, France, Poland, Norway, Switzerland, Russia, Ukraine, Czech Republic, Singapore and other countries.

Fill adaptor thread type: TR21-4.

Instructions for use:

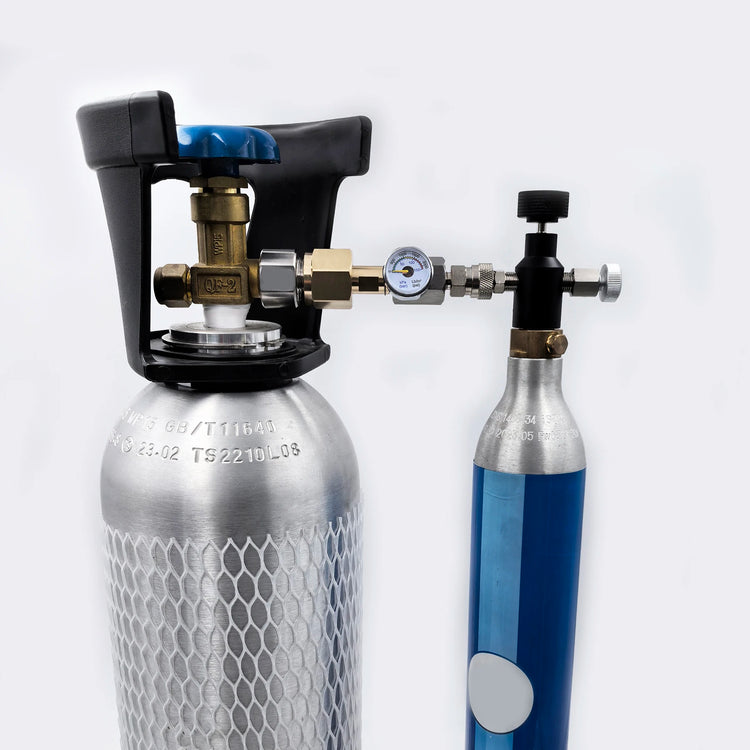

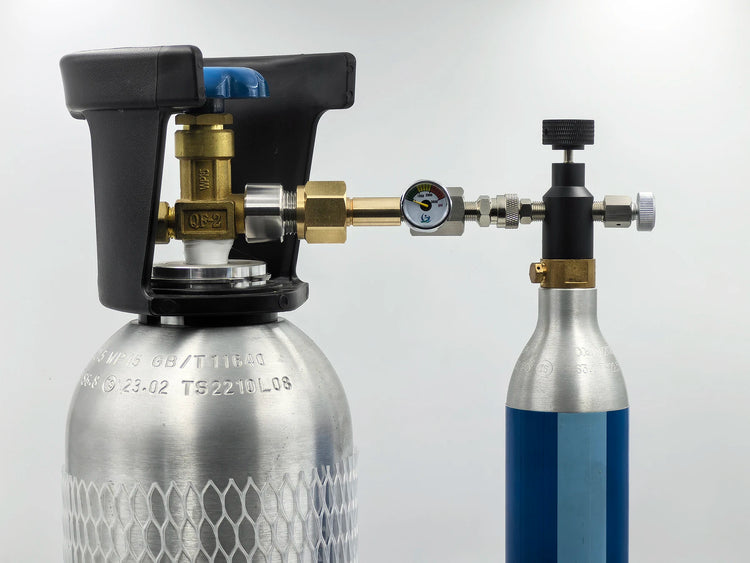

Screw the adapter onto the larger CO2 cylinder.

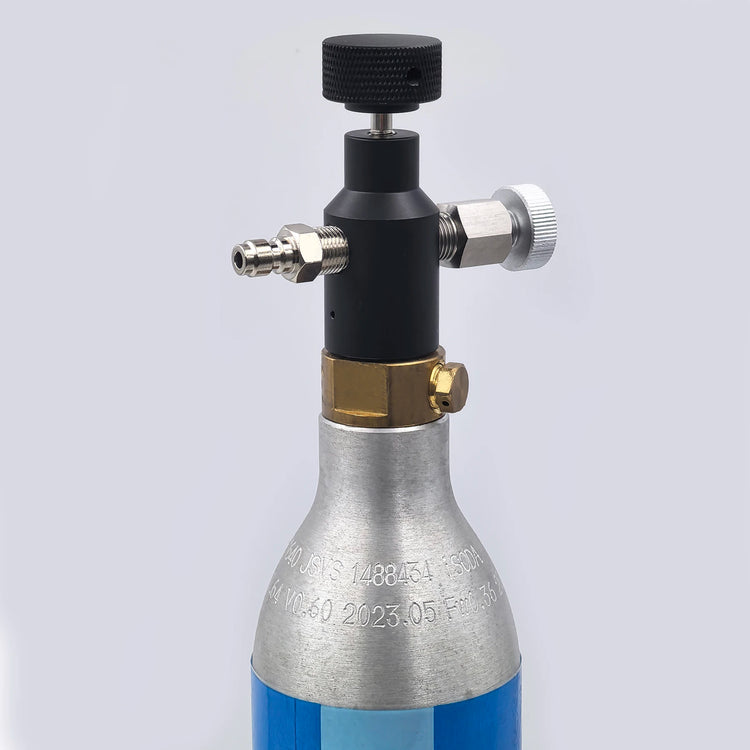

The empty soda cylinder is screwed into the fill adapter.
Connect the quick plug.
Open the valve of the larger cylinder.
Wait for the cylinder to be fully filled, about 30 seconds.
Close the valve of the larger cylinder.

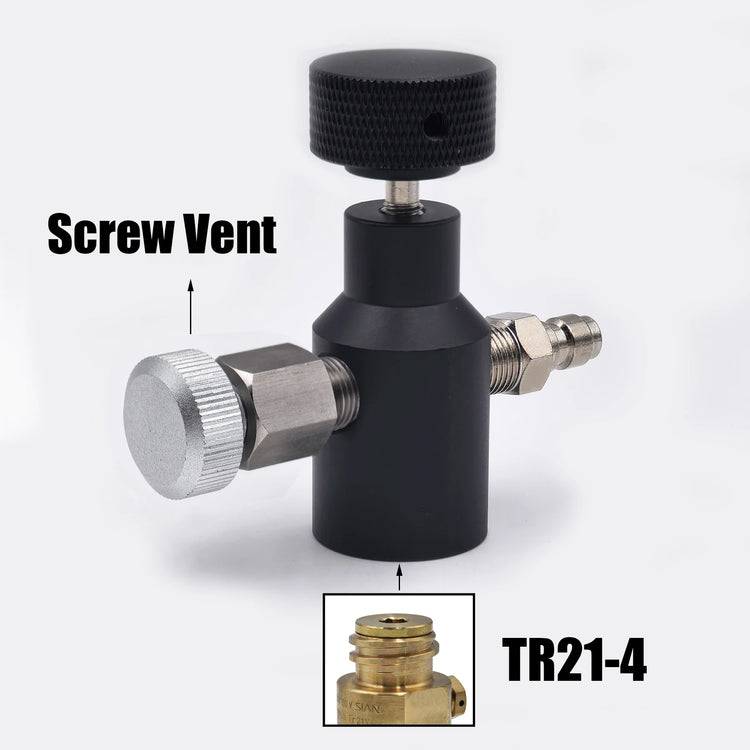

Open the bleeder valve of the filling adapter to remove residual gas.
Screw off the carbon dioxide cylinder and complete the operation.
