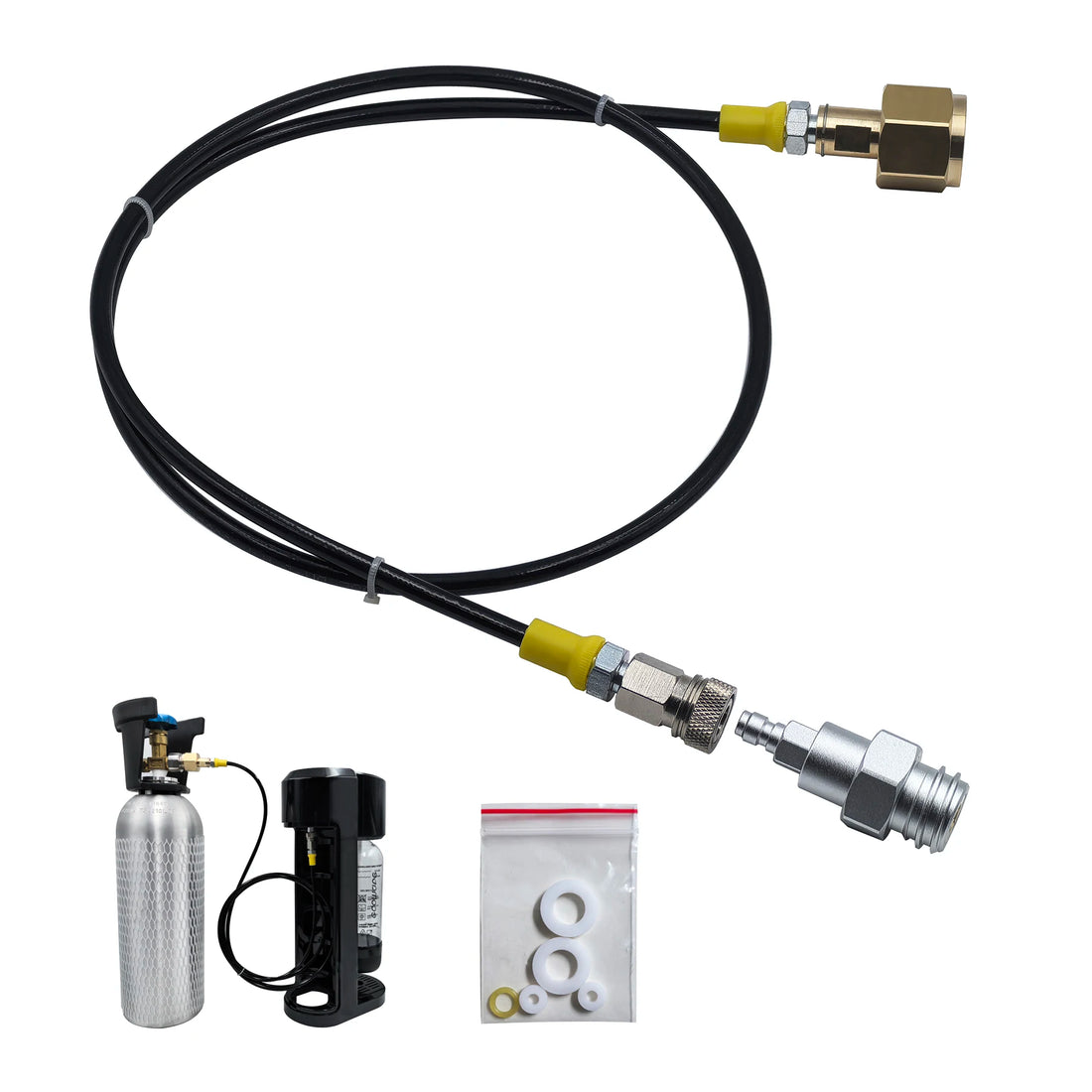

Terra DUO Art To External CO2 Tank Adapter Kit Soda Maker Accessories with Quick Disconnect Connector W21.8-14 G3/4 CGA320

Product Features:

1. Safety and health are the most important, and all materials meet food safety requirements, allowing you to use them with confidence.

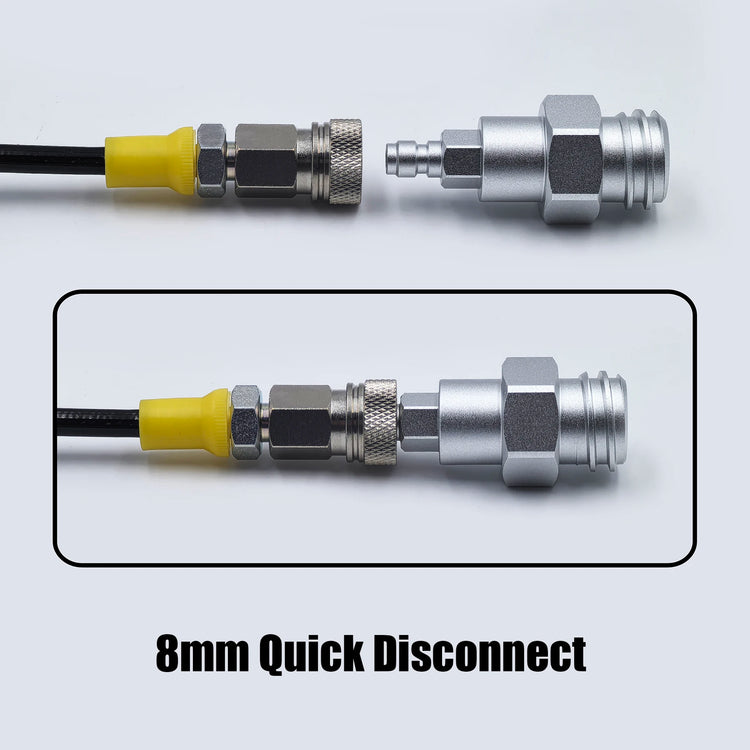

2. With quick disconnect connector. And fit all the sode machine with TR21-4 thread.

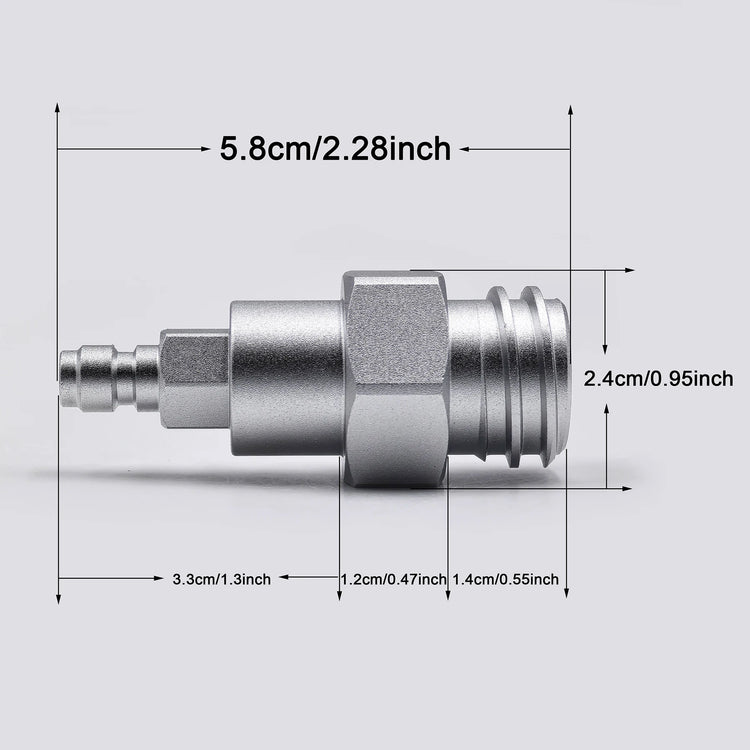

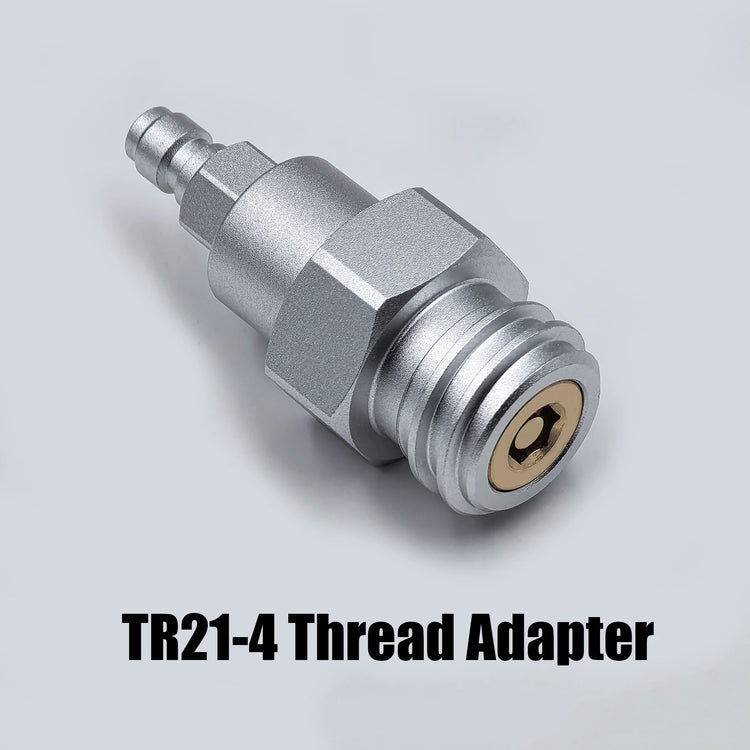

3. TR21-4 adapter has been optimized and designed to perfectly fit the soda water machine, making it easier to install without the need for tools, just tighten it by hand.

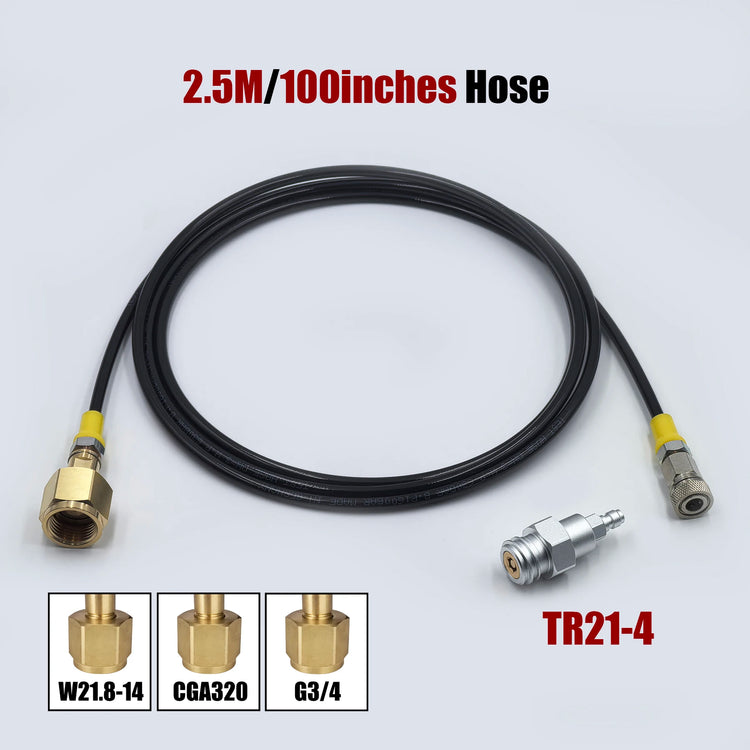

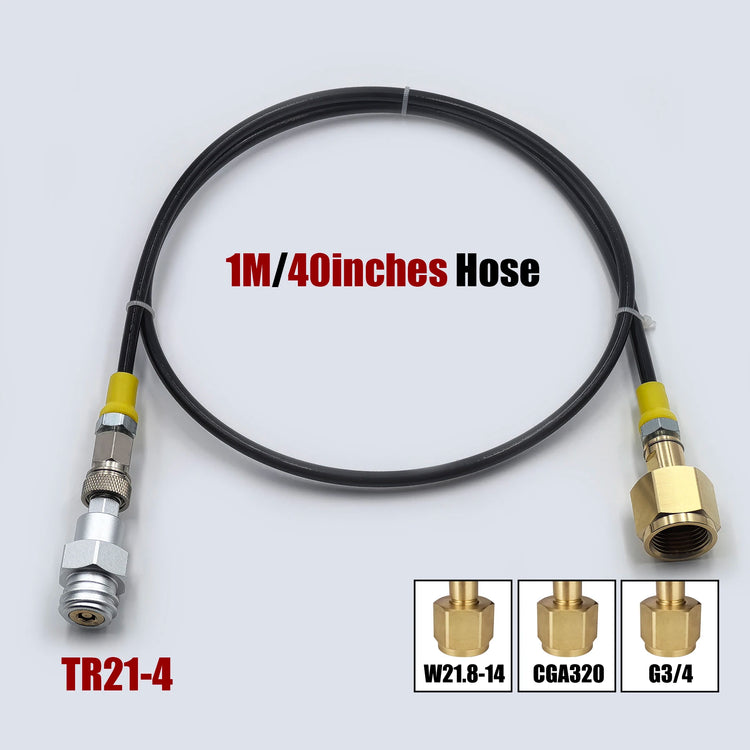

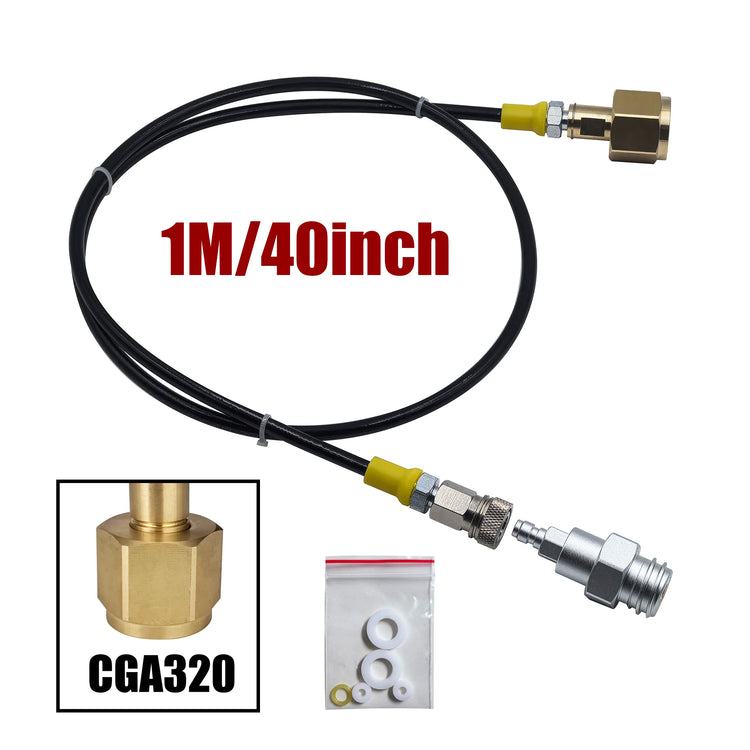

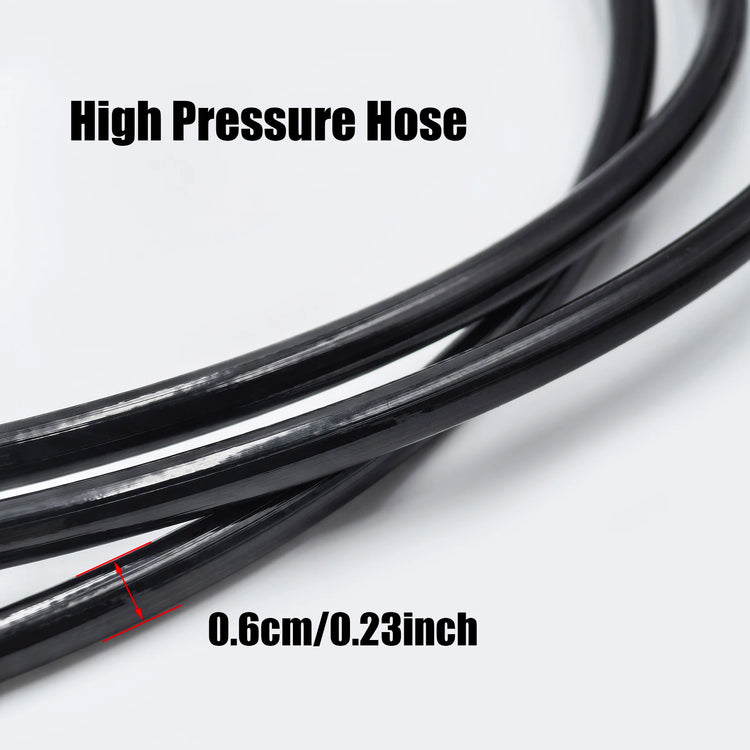

4. Hose length 100cm/250cm(40inches/100inches), soft and durable. Max working pressure is 9100psi/630bar, real high-pressure hose.

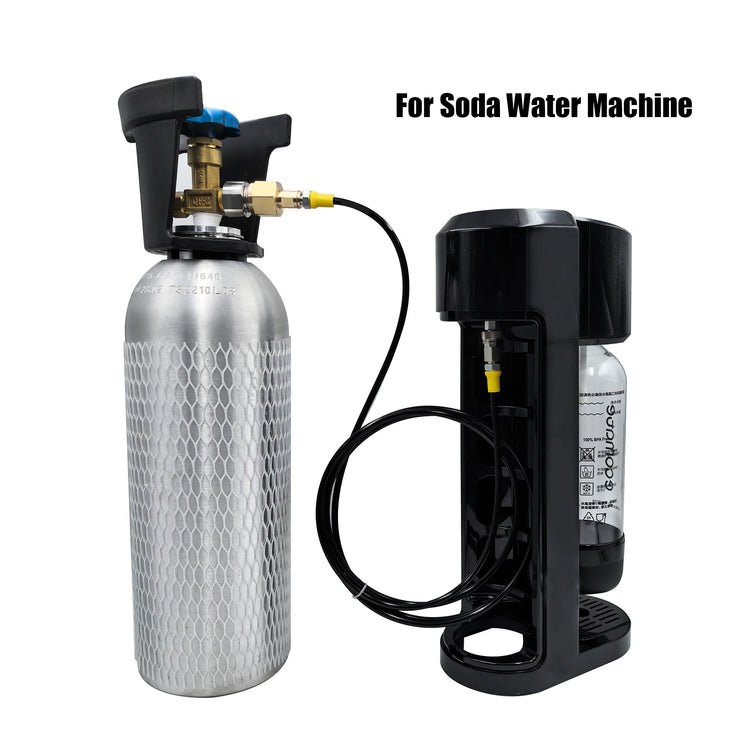

5. This item use for soda water machine/maker to external tank/cyclinder connect. Like 5LB, 20LB or 50LB commercial CO2 tanks. Allows external tank/cyclinder valve connector thread W21.8-14 or G3/4 or CGA320.

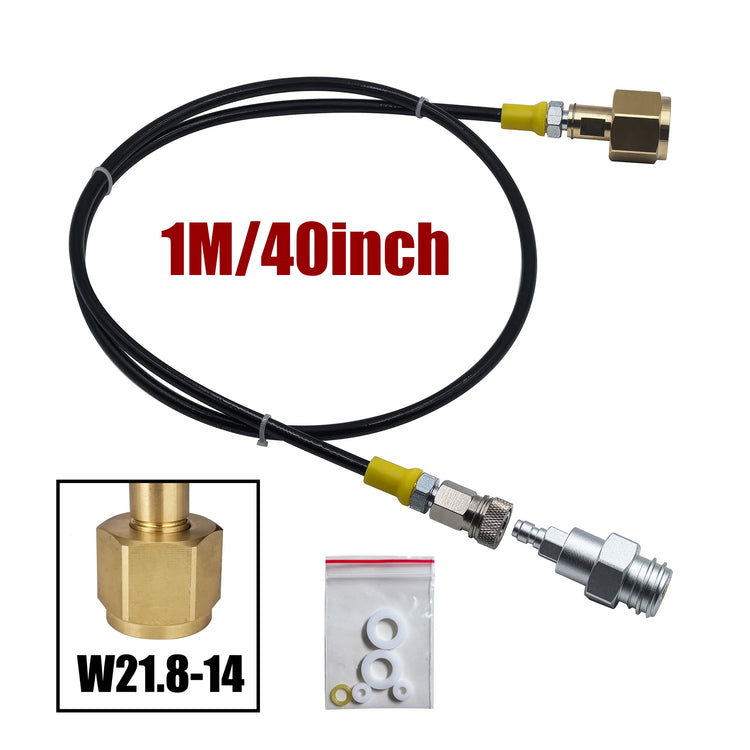

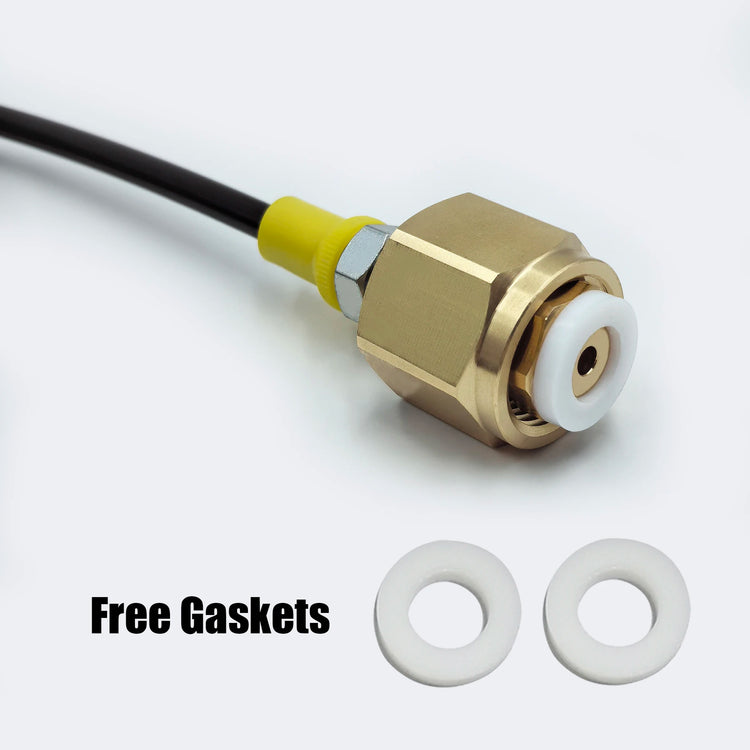

6. Comes with free backup o-rings and sealing gaskets.


How it works:

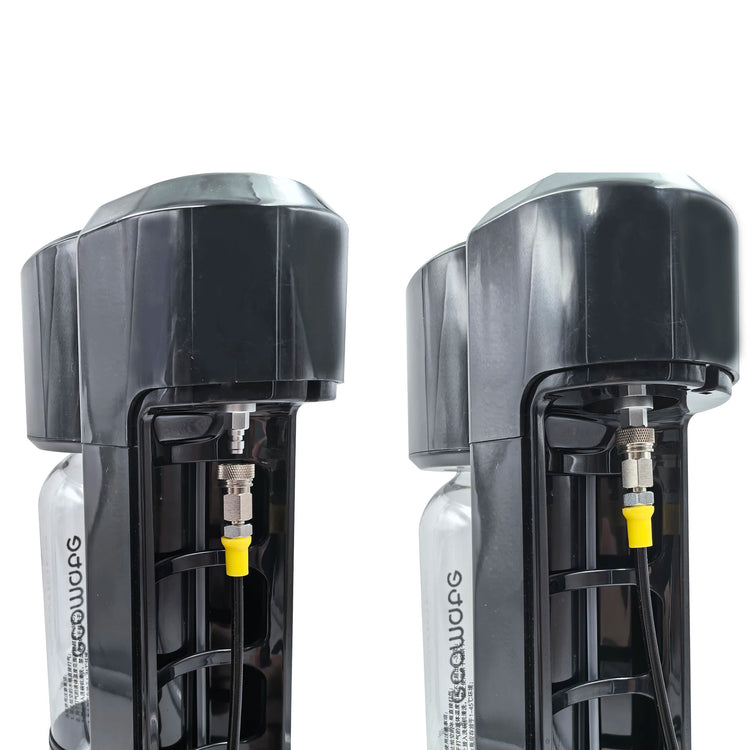

1. Screw pin valve into soda water machine

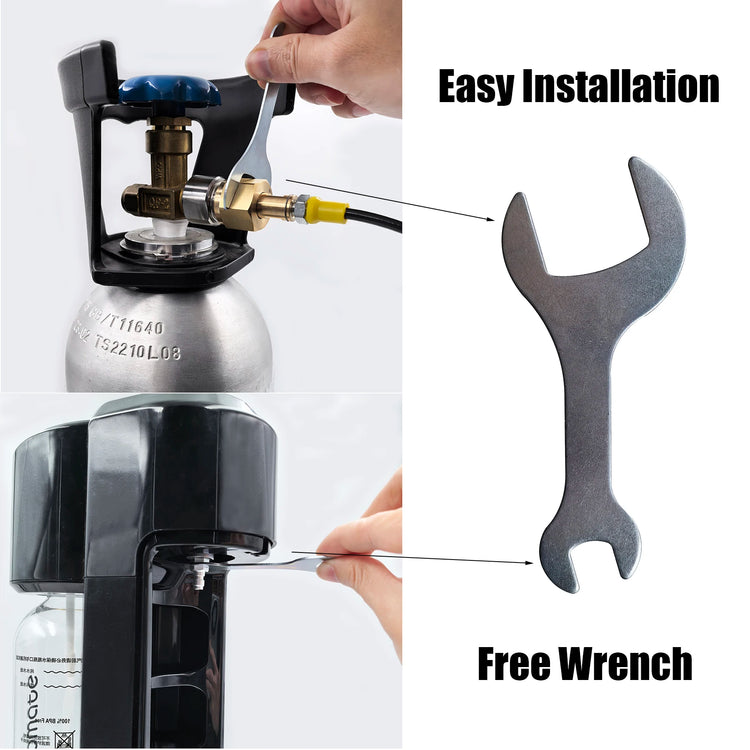

2. Screw the nut to CO2 tank and tighten it by wrench
3. Connect the quick coupler
4. Open the valve of the CO2 tank
5. Done, you can use your soda machine now


If you want to remove the product from the soda water machine:

1. Close valve of the CO2 tank
2. Press button of soda machine to drain residual CO2(if you don’t follow this guide to disconnect the coupler, the o-ring of quick coupler will be blowed out)
3. Disconnect the quick coupler
4. Unscrew pin valve from soda machine and unscrew nut from CO2 tank

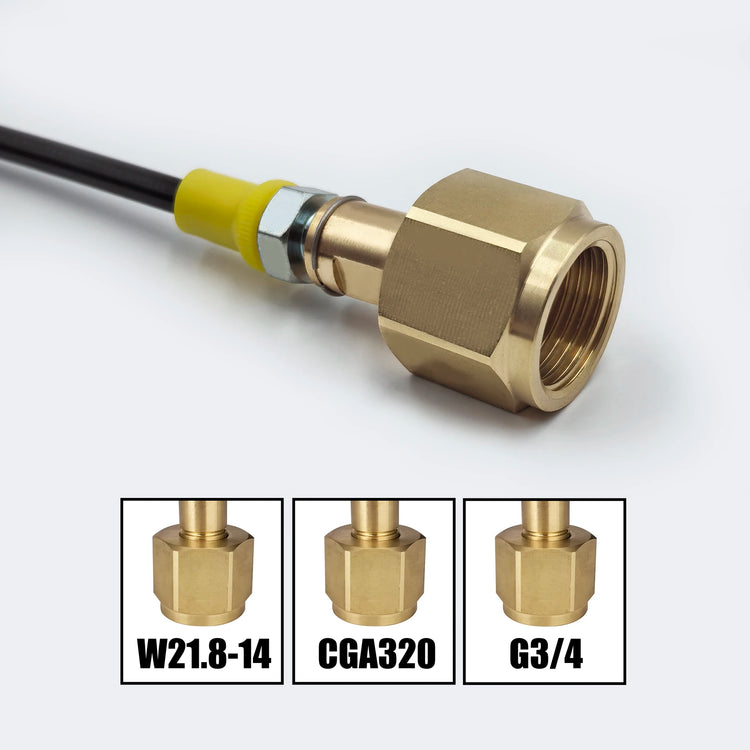

How to choose the nut thread:

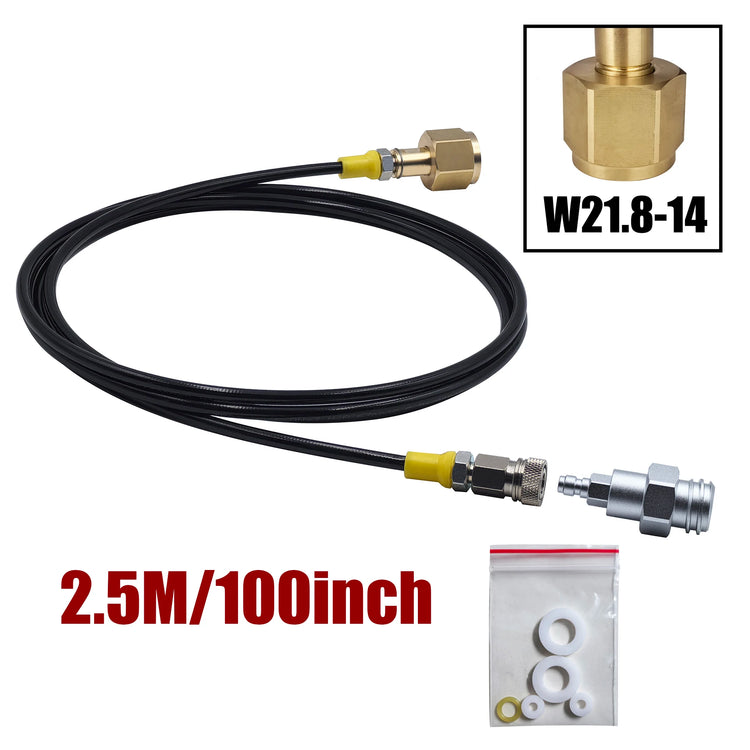

W21.8-14(Din 477)/JIS M22-14
Diameter=21.8mm
Generally applicable to UK, Germany, France, Poland, Japan, Korea, Norway, Switzerland, Russia, Ukraine, South Africa, Sweden, Chile, Czech Republic, Singapore, etc.

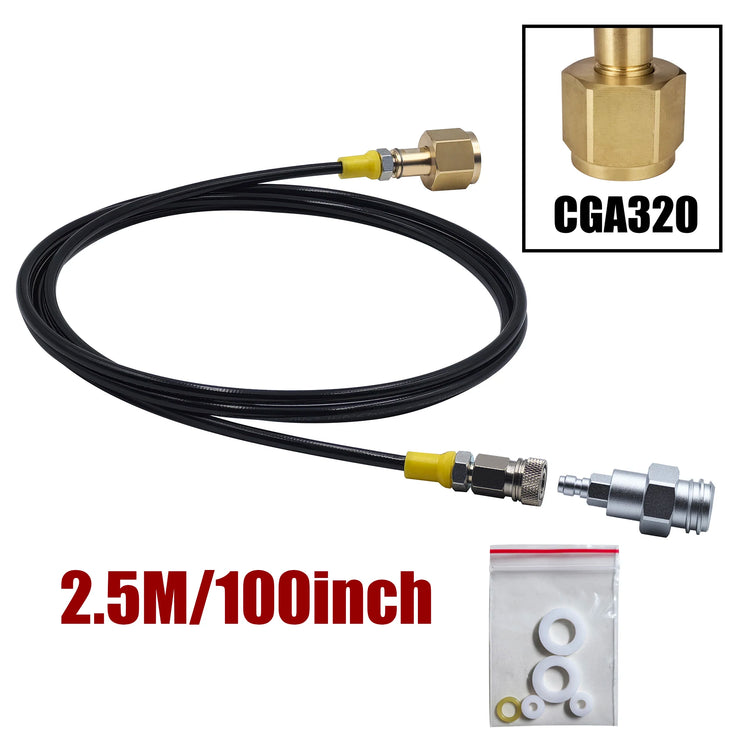

CGA320
Diameter=20.8mm
Generally applicable to USA, Canada, Brasil, Colombia, Philippines, etc.

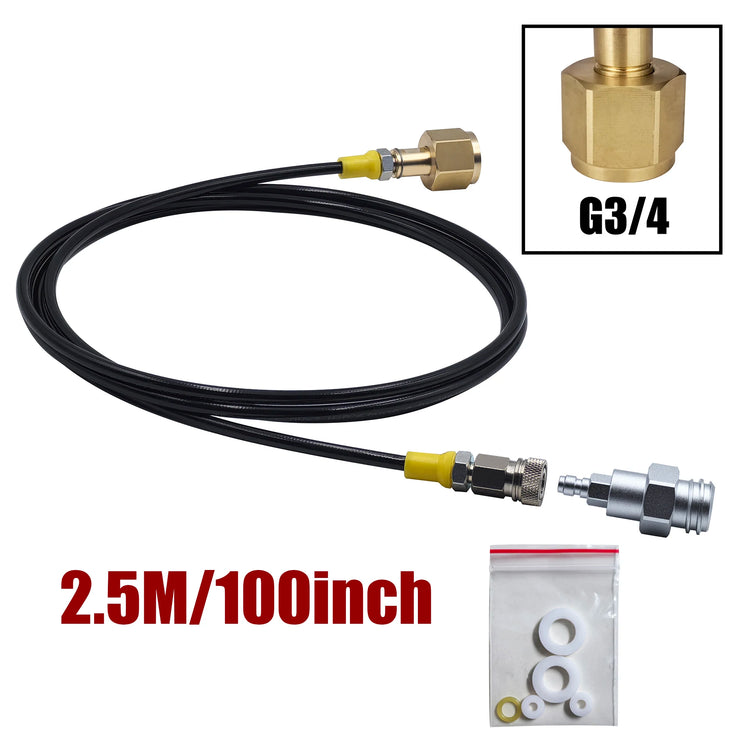

G3/4
Diameter=26.4mm
Generally applicable to Russia, Lithuania, Belarus, Czech Republic, Slovakia, Kazakhstan, etc.
